Lazervida - Assembly and Start-up

Congratulations on becoming a user of Lazervida.
Before opening the box, please make sure to read through the safety regulations. This tutorial will simply guide you through assembling and using your machine.

The article will be divided into four parts-

1. Unboxing

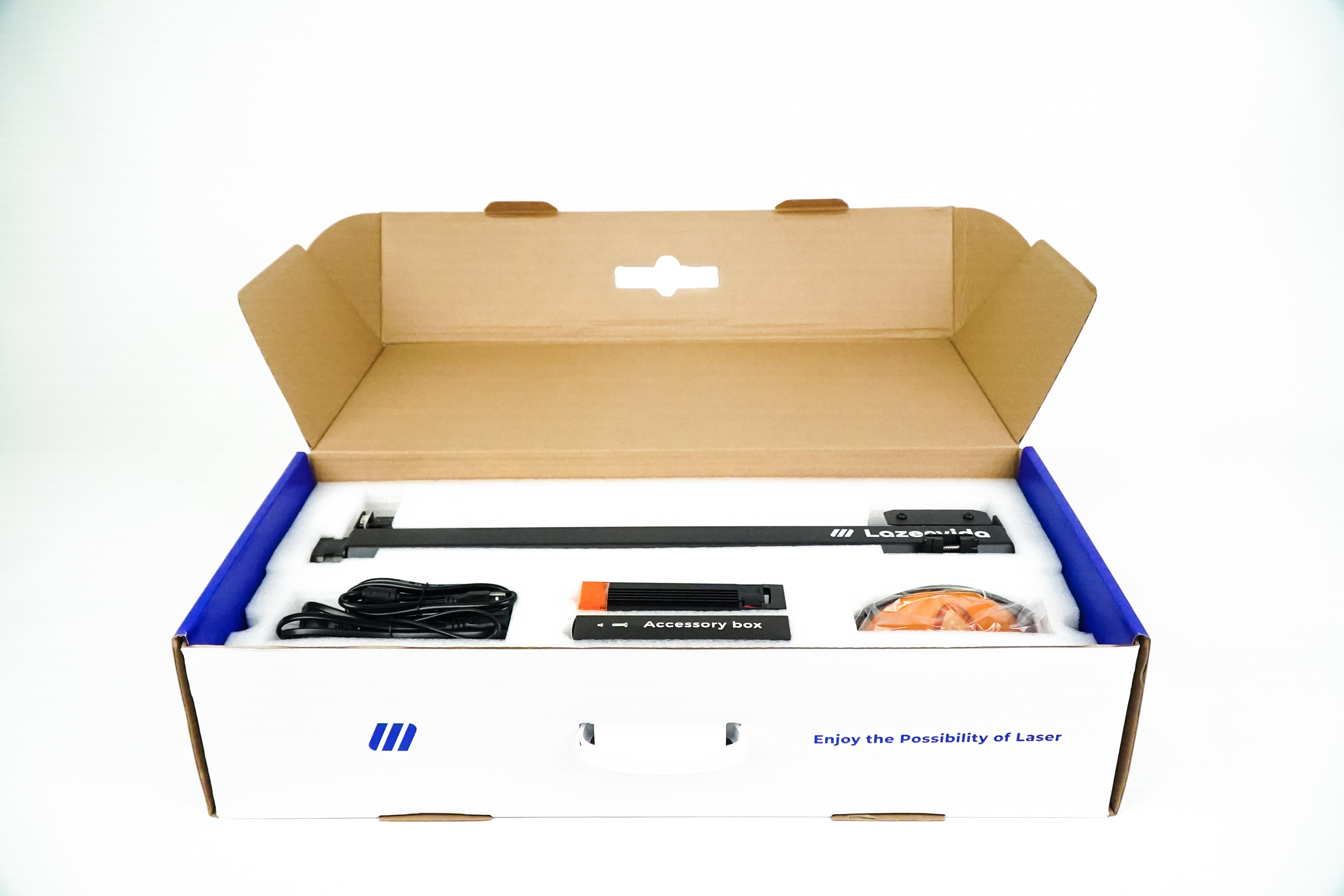

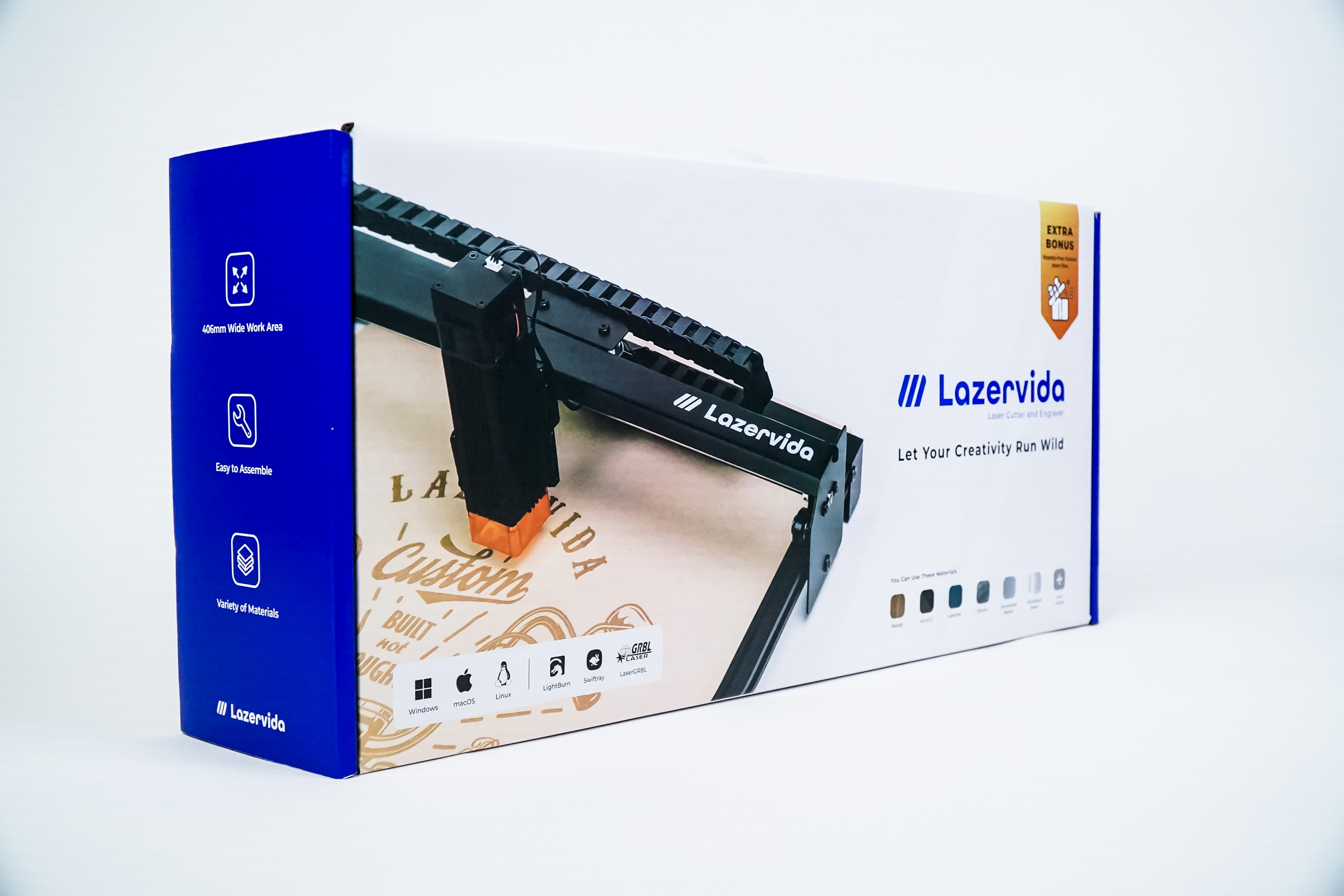

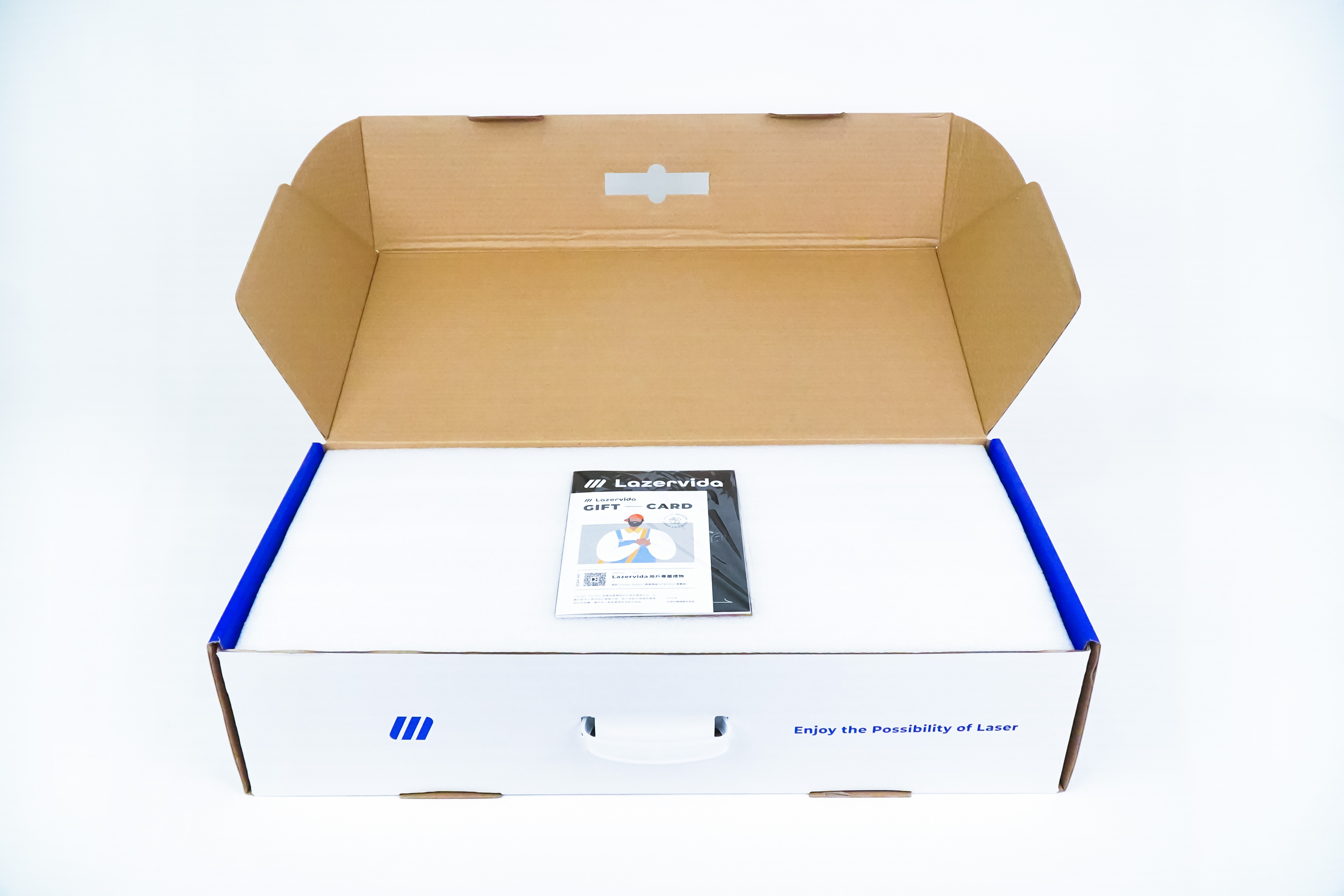

1-1. Place the box on the table and unseal the box.

Take out the User manual / Gift card/ Wood piece *2.

1-2. Items that should be in the box:

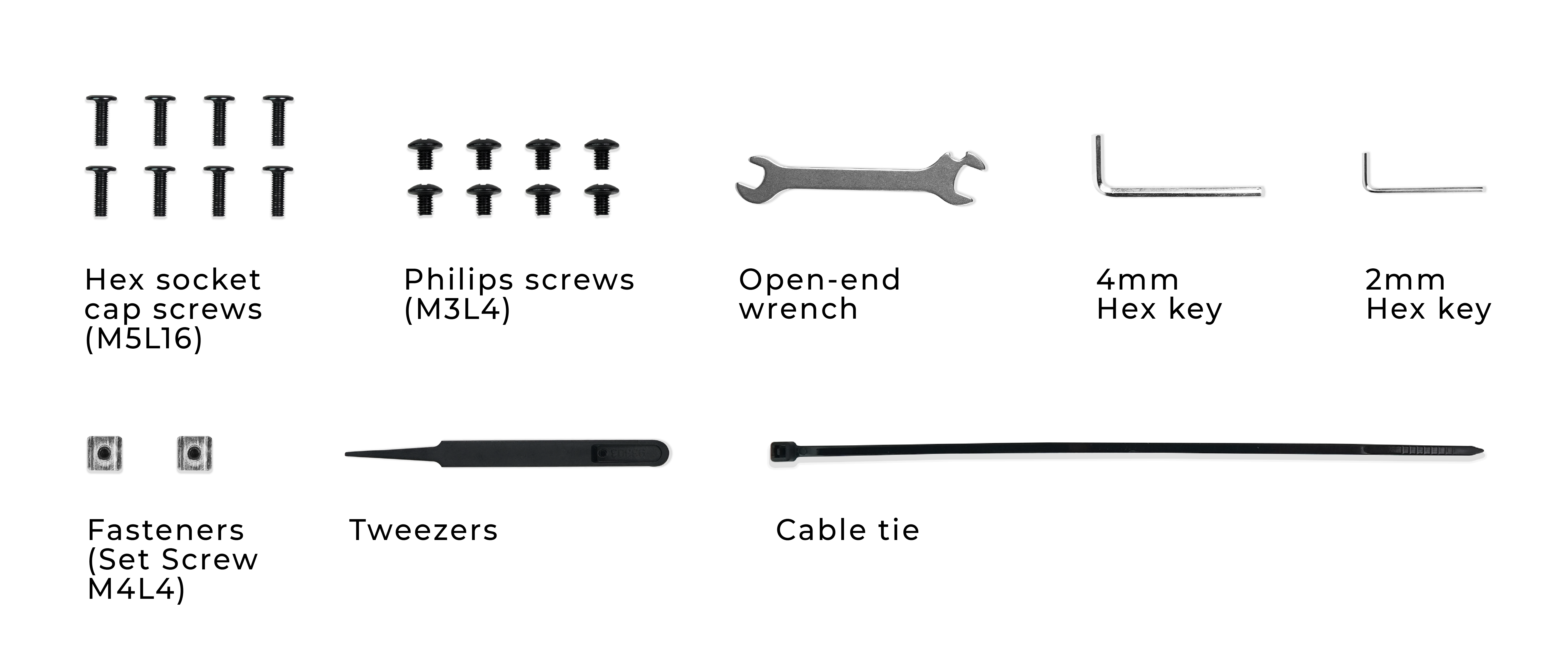

1-3. What should be in the accessory pack :

2. Assembly

Video instruction:

(Please turn on Youtube English subtitles)

3. Swiftray installation

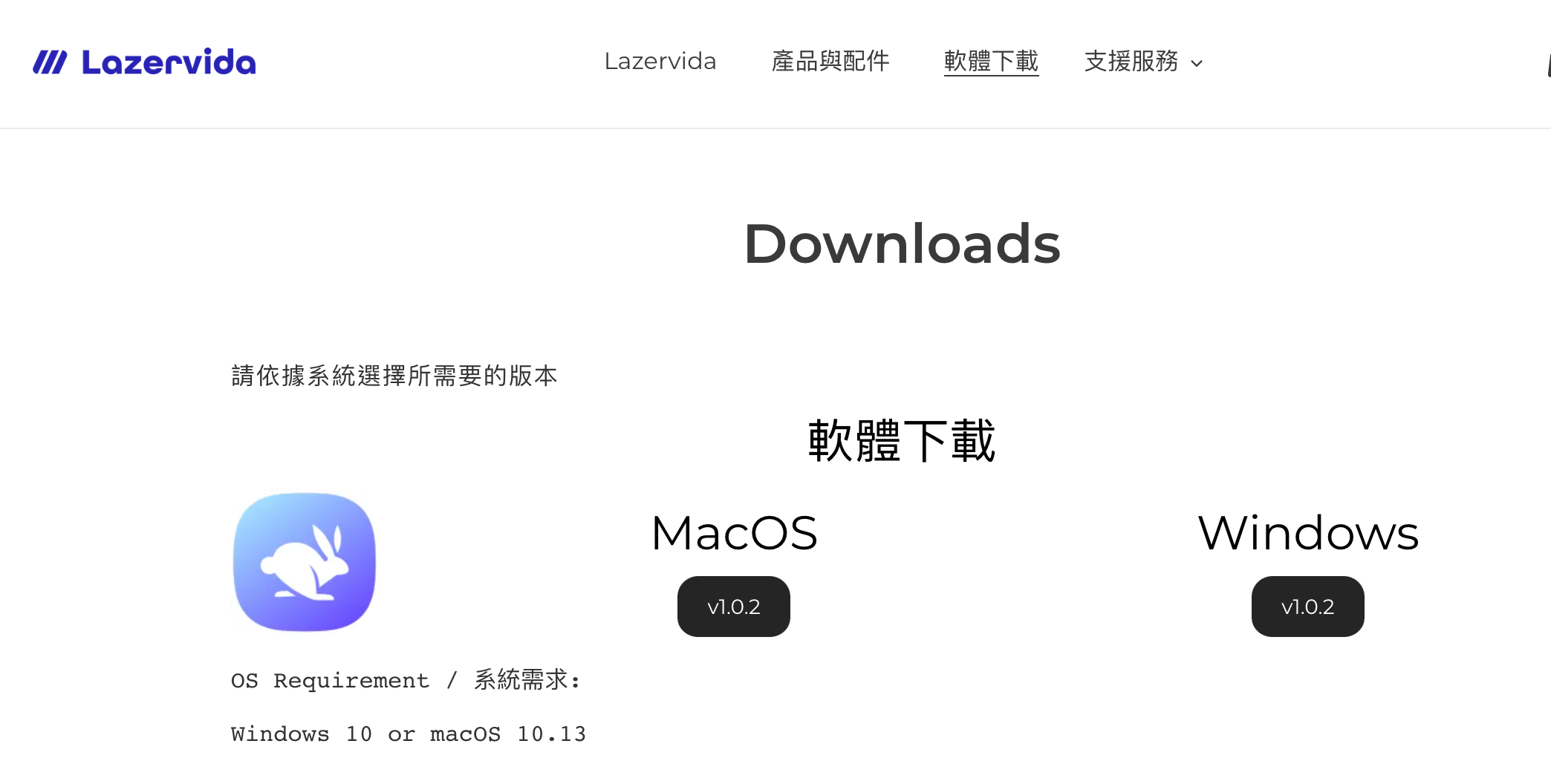

3-1. Swiftray download link:

Download Swiftray

3-2. Video instruction:

(Please turn on Youtube English subtitles)

4. Start engraving

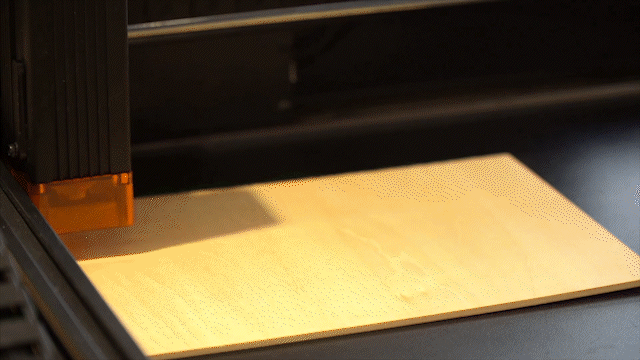

4-1. Adjust the focus:

The focus probe should be flipped down and slightly touch the surface of the engraving material. After that, flip the probe back to its original position.

4-2. Import the engraving test file:

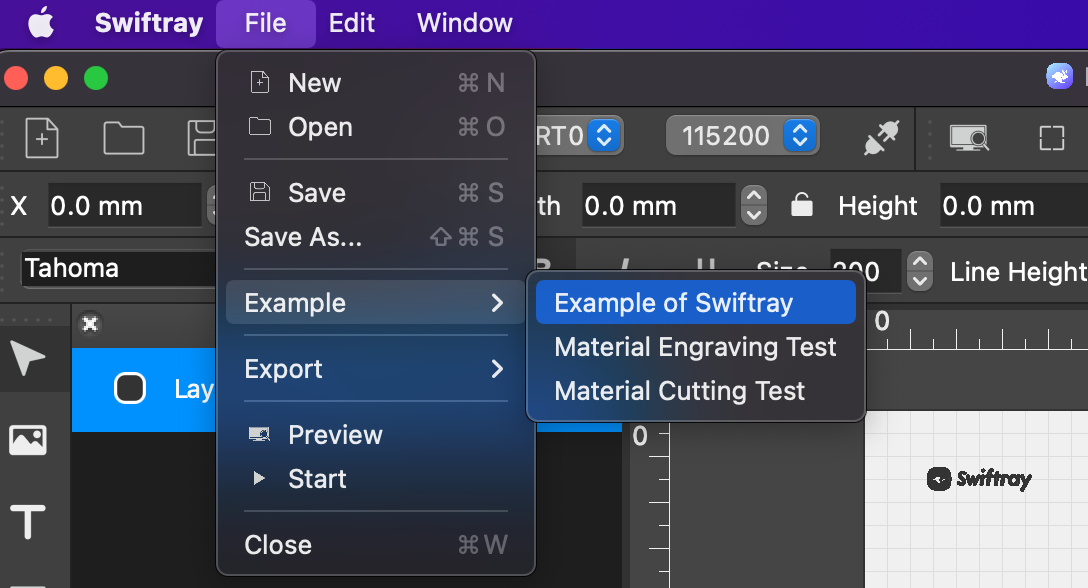

Click "Menu" > "File" > "Examples" > "Examples of Swiftray".

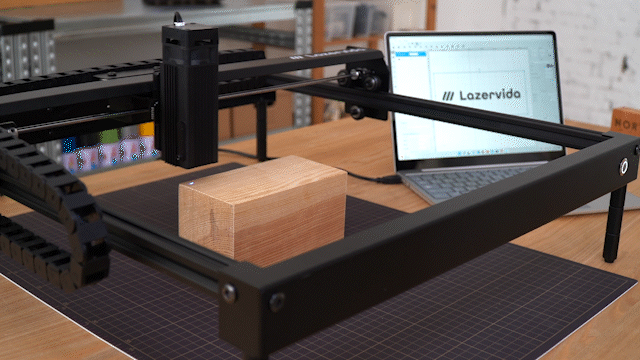

4-3. Laser alignment:

After importing the file, click "Framing" the laser head will emit light spots to preview the object's frame. If you can't see the light spot clearly, you can temporarily remove the laser protection shield and put it back on before you start engraving.

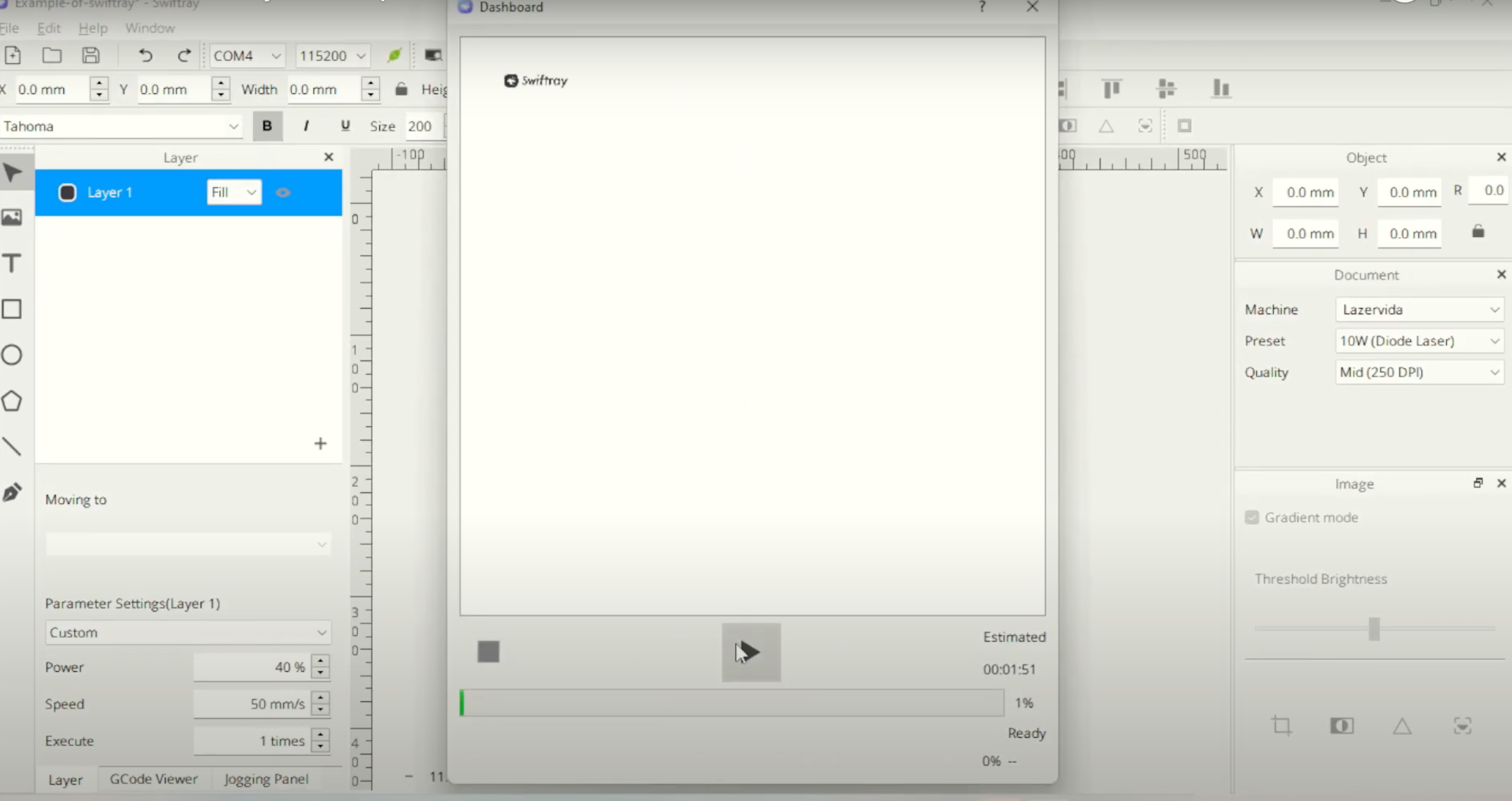

After clicking "Start," the machine will start to engrave.

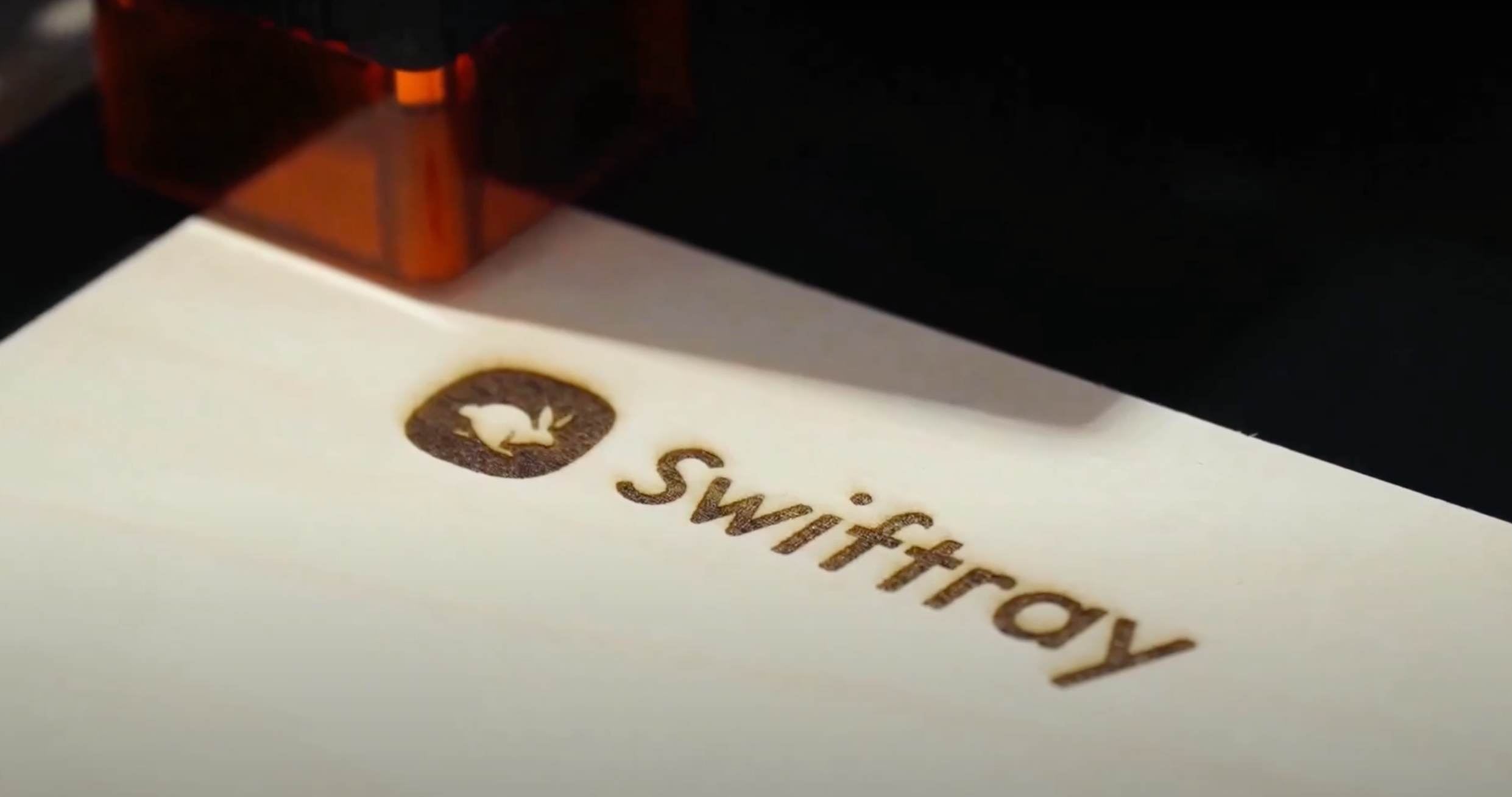

4-4. Engraving Result:

If the engraving result is blurry, unclear, or light in color, please check if the laser head is focused accurately.

If yes, please check the material suitability/parameters / cleaning the laser head, and find the troubleshooting here- Lazervida - Material cannot be cut through.
